Double Cut Universal Track (2 Pack) with One Intersection Kit
10621

Double Cut Universal Track (2 Pack) with One Intersection Kit - 24"

$34.99
In stock
Size

Made from a single piece of anodized extruded aluminum, each of the Fulton T-tracks are designed for creating jigs, fixtures and even track tables for your work shop! Add the intersection kit and you have the ability to make a table top that allows you to move hold downs, clamps and more from end to end without removing them. Track tables are great for framing, pocket hole drilling, pocket hole joint securing, sanding, planing and a whole lot more!

The unique universal, double cut profile pulls double duty since it accepts two types of bolts. The track will accept standard 1/4" hex head bolts and 5/16" T-bolts. This makes this type of track extra versatile and very handy in your workshop. If you don't have either size of these two bolts, both sizes are readily available at most any hardware or big box store. Each track measures 3/4" wide by 3/8" tall which makes milling the slot very easy.

The track can be used in a wide variety of ways including on top of fences for adding jigs and fixtures. The track can also be used by embedding them into table tops or workbenches to give you a long hold down run. The 3/4" x 3/8" also allows you to use the track in a standard 3/4" x 3/8" miter slot like a standard miter bar. Simply attach a few smaller pieces to the bottom of a sled and you're ready to go.

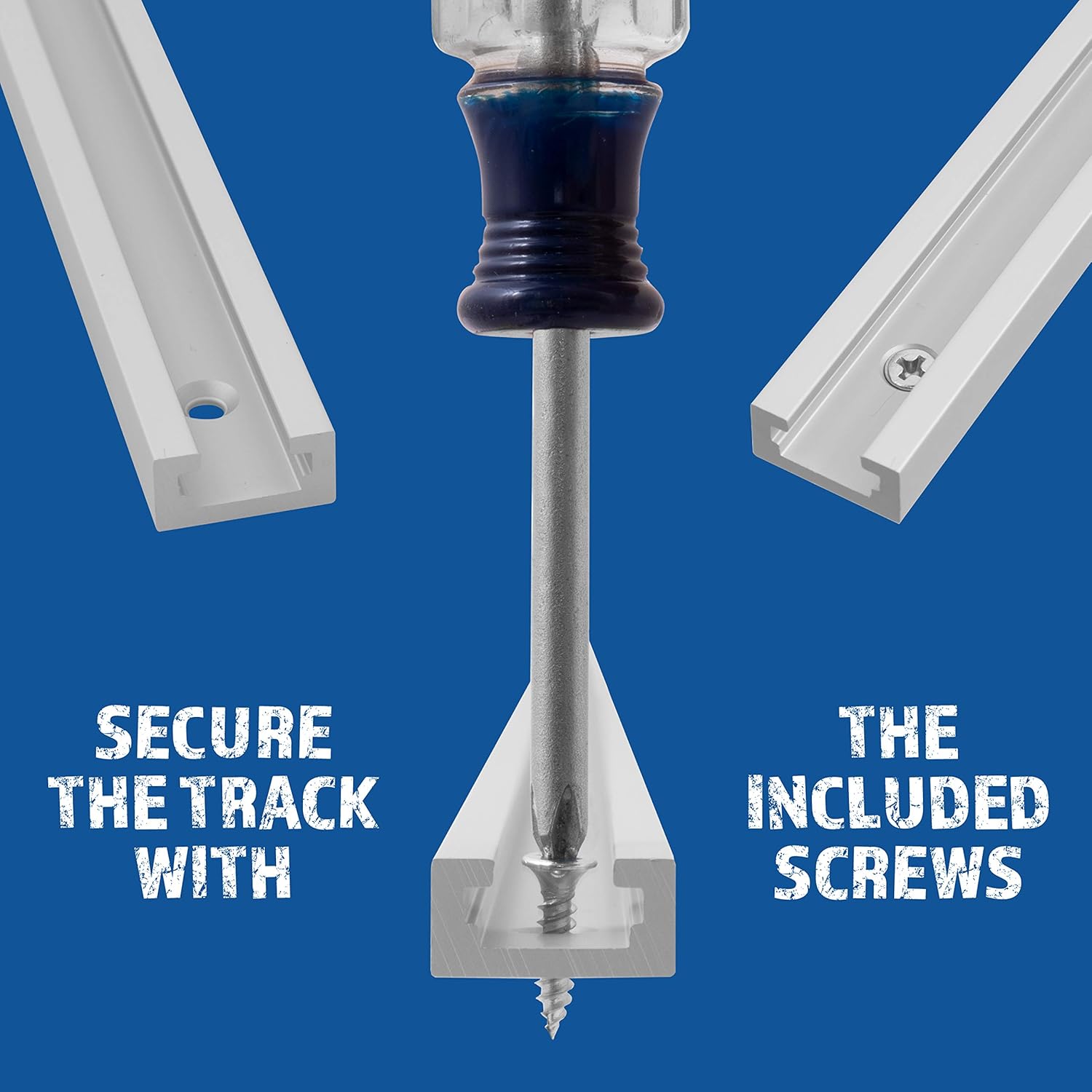

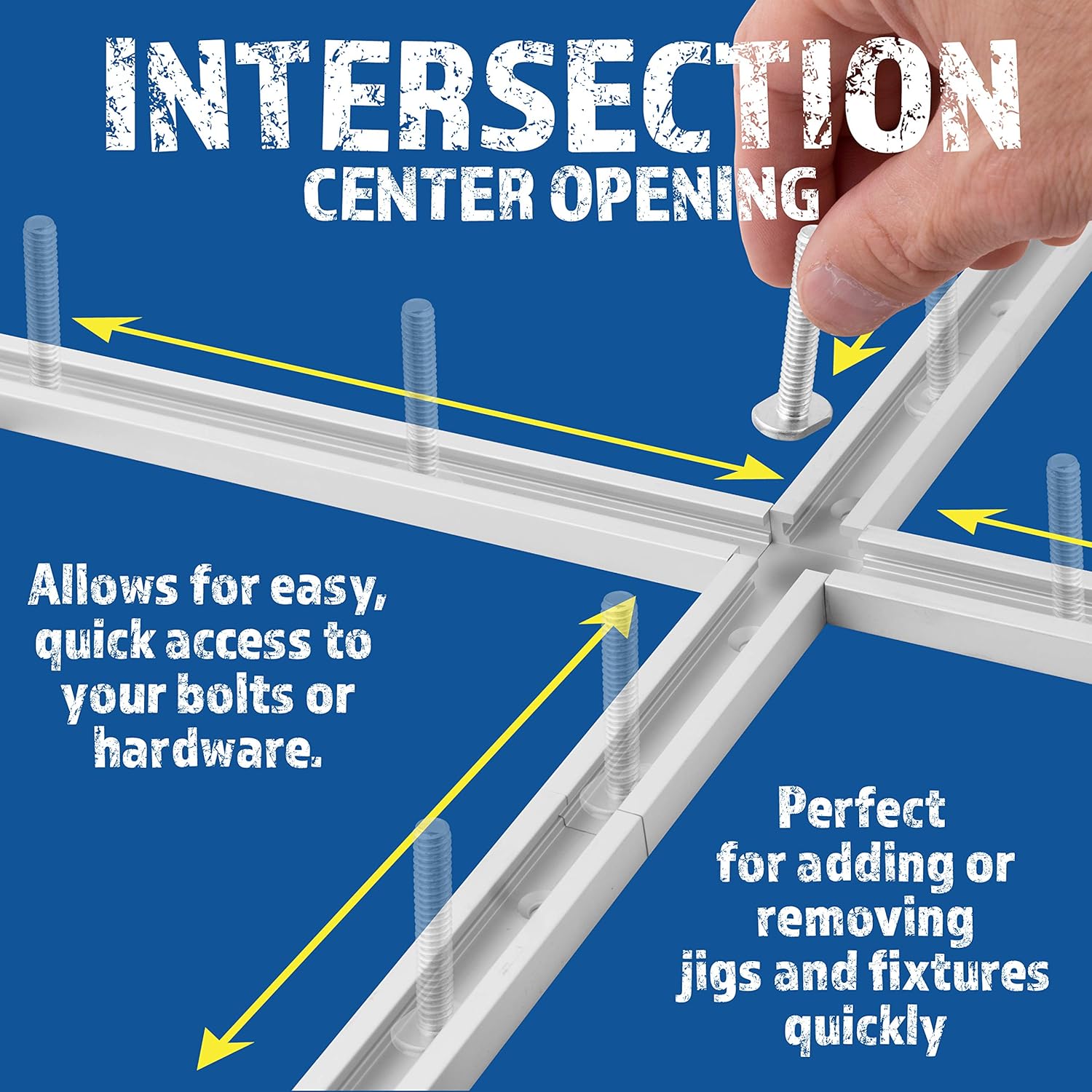

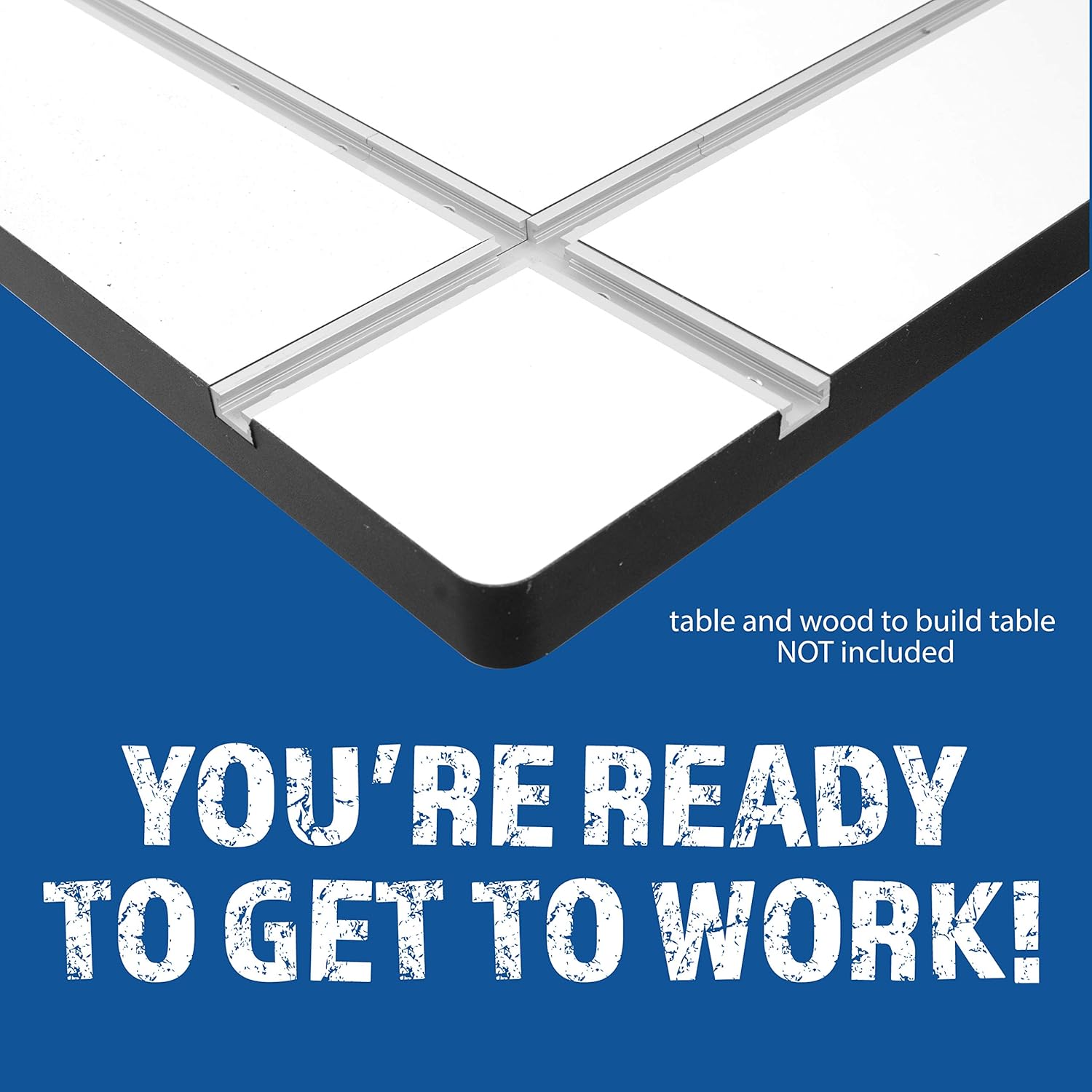

As with the track, the included intersection kit is made from the exact same aluminum material. The intersection kit is designed to give you the ability to cross over fixtures from one end of a table to the other end and change location throughout the table top without removing the fixture. This comes in very handy when framing, sanding, planing and other typical woodworking applications. When securing the track or the intersections kit, you can use the included wood screws by themselves or you can use a polyurethane or epoxy adhesive along with the screws. We typically will only add adhesive when extra clamping pressure will be required. Each track is pre-drilled and counter sunk to comfortably accept the wood screws.

More Details

Features

  • Hold stock down
  • Keep stock from sliding
  • Sand your work pieces
  • Frame with pocket holes
  • Finish your projects
  • Hand plane larger work pieces
  • And a whole lot more!

Complimentary Products

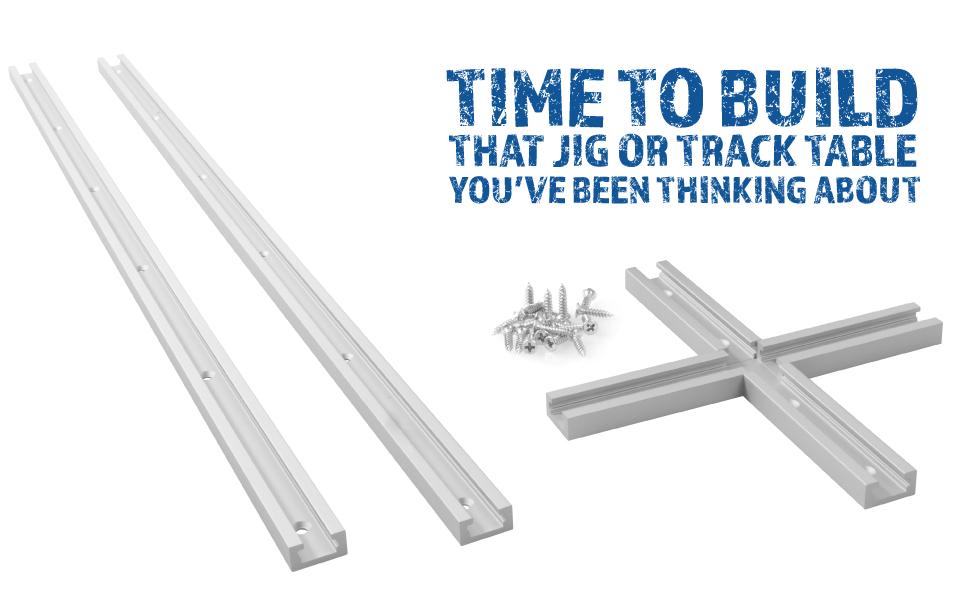

Time to Upgrade Your Workspace!

We all do it. We put off those projects that take a small amount of time simply because its not part of our finished product. What of the that little project could help your finish off your bigger projects quicker and much more efficiently. Building a jig or a track table can help with a wide variety of projects and track table are super easy to build.

What can a track table do for you?

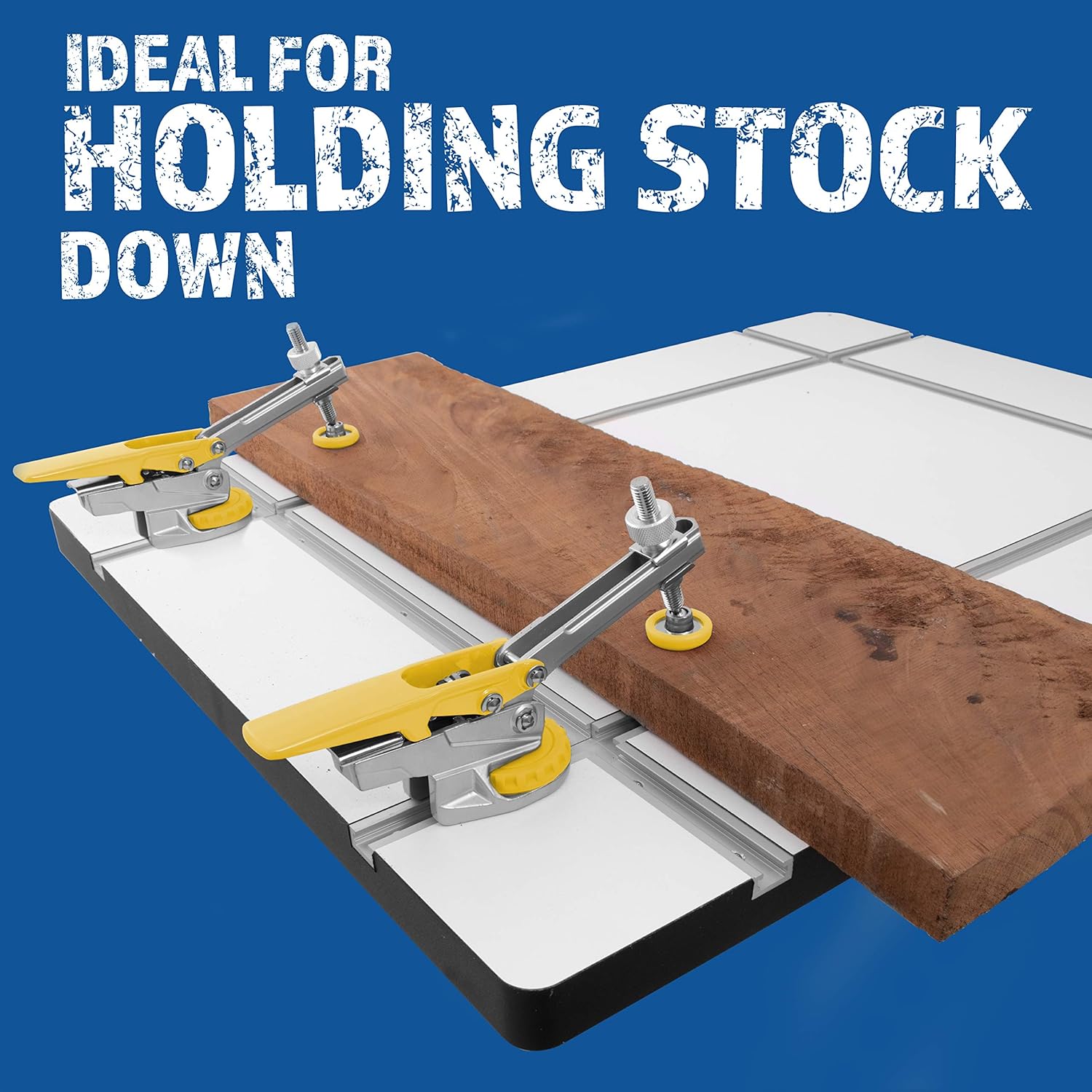

• Hold stock down
• Keep stock from sliding
• Sand your work pieces
• Frame with pocket holes
• Finish your projects
• Hand plane larger work pieces
• And a whole lot more!

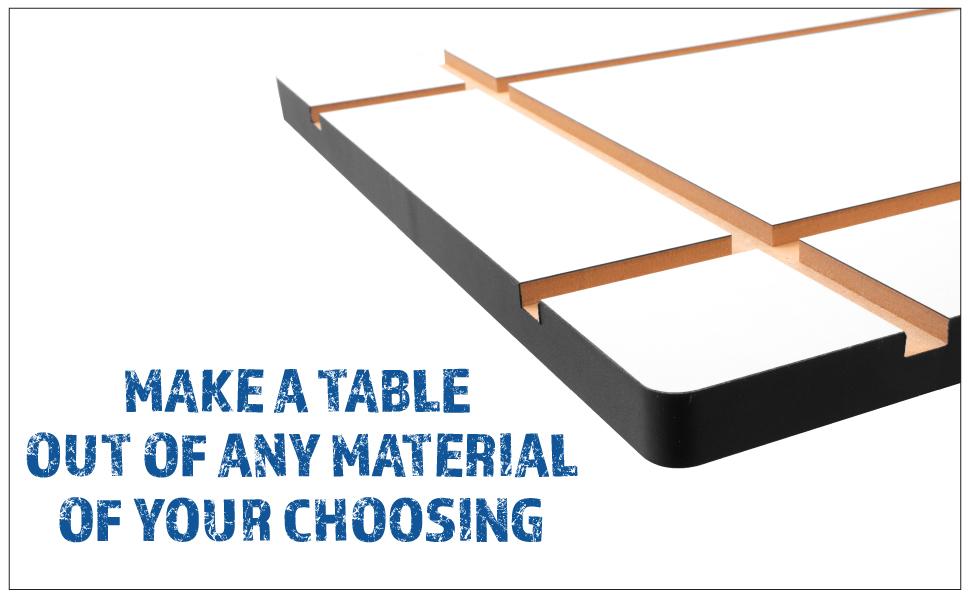

MDF, Solid Hardwood, Plywood and More!

Depending on your taste or budget you can make a high quality table top out of most any material you desire! All you really need to do is to keep in mind the thickness of the stock so it can accommodate the track depth. Many woodworkers tend to lean toward MDF since it is solid, easy to mill and is an economical choice.

Ready to Go, Right Out of the Box!

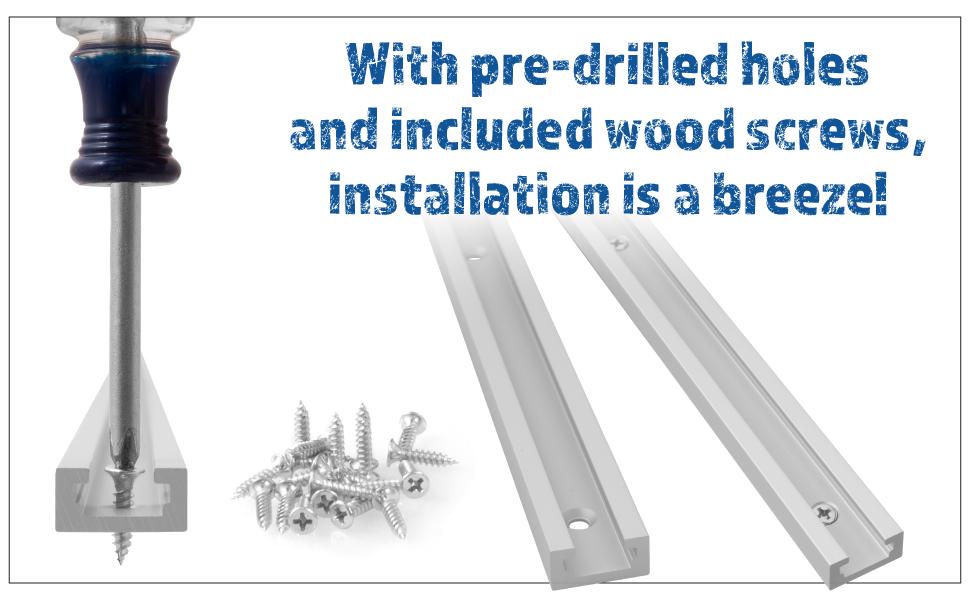

Each track is predrilled and countersunk to neatly fit the included wood screws. This makes installing the track into a table top or jig super easy and much less time consuming. If you choose to add an adhesive for extra holding power, we recommend using an epoxy glue for best results.

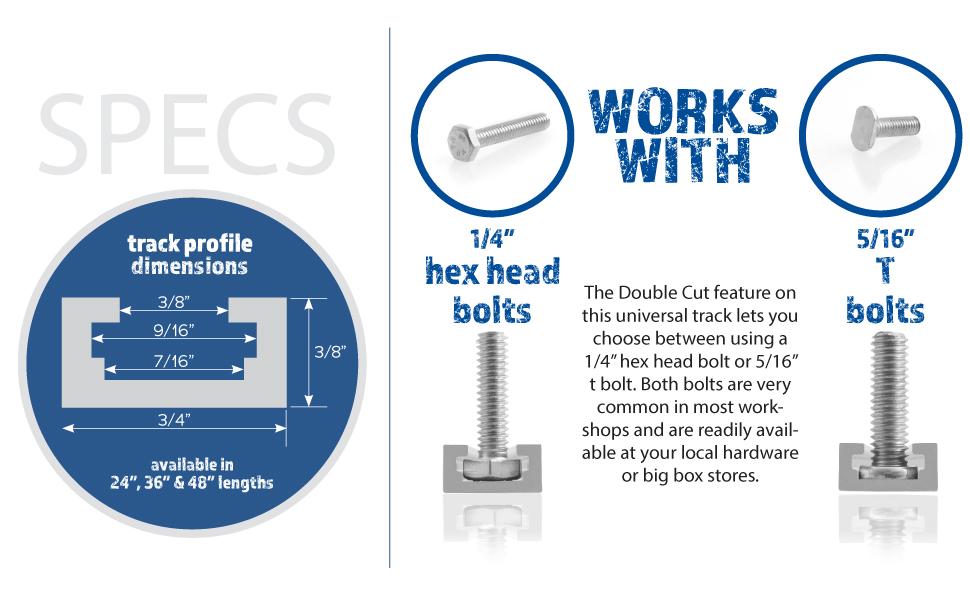

Track Dimensions

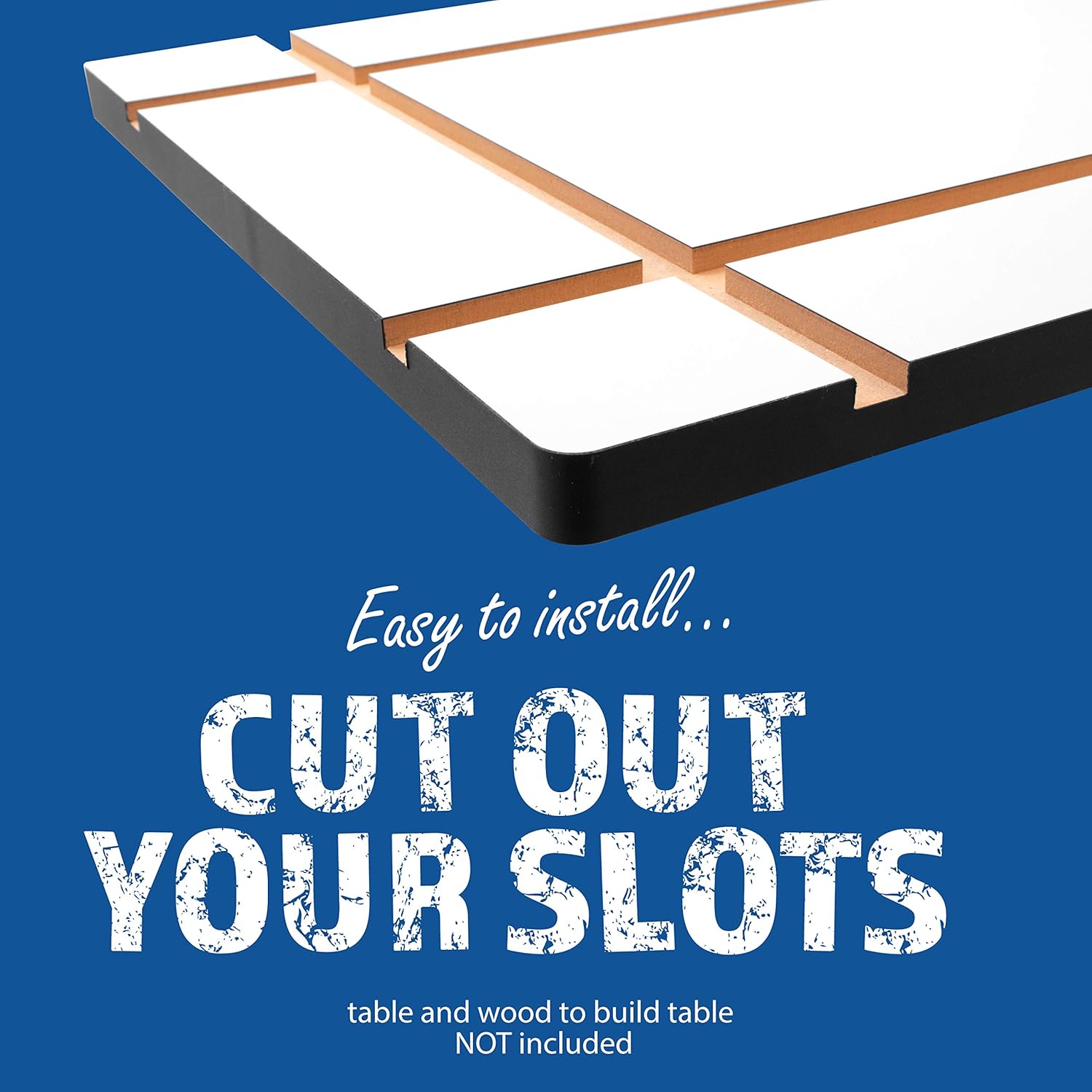

Each track and the intersection kit tracks are extruded to the specifications shown above. These specs are the perfect guide for cutting slots into a table top surface to install the tracks. The inner dimensions of the track show that our track will work with both 1/4" hex head bolts and 5/16" t-bolts.
