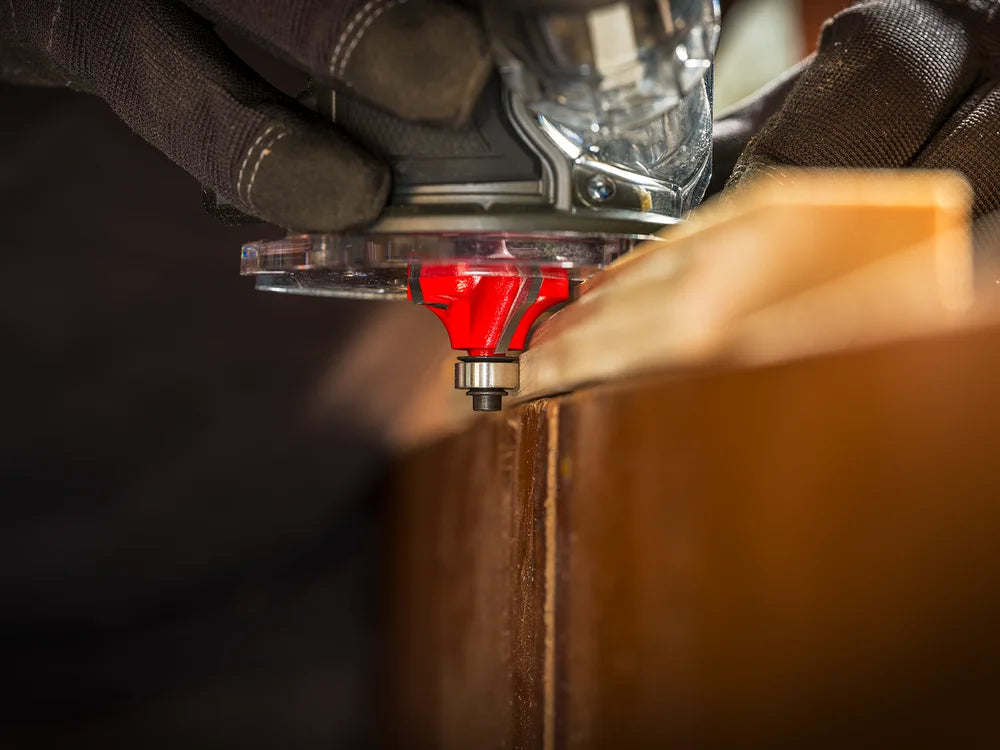

These Freud Beading Bits create an attractive bead profile for furniture and millwork. Cut a quarter-round shape bounded by fillets, known as a bead, is produced in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (and vice versa). Cuts all composition materials, plywoods, hardwoods, and softwoods. Use on CNC and other automatic routers as well as hand-held and table mounted portable routers.
Features
Complimentary Products
Product Details
These Freud Beading Bits create an attractive bead profile for furniture and millwork. Cut a quarter-round shape bounded by fillets, known as a bead, is produced in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (and vice versa). Cuts all composition materials, plywoods, hardwoods, and softwoods. Use on CNC and other automatic routers as well as hand-held and table mounted portable routers.
Specifications
Specifications
Specifications
Specifications
Specifications
Specifications
Specifications
Specifications
Specifications
Brand: Freud
Manufacturer #: 36-100
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 5/8"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 1/16"
Brand: Freud
Manufacturer #: 36-100
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 5/8"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 1/16"
Brand: Freud
Manufacturer #: 36-104
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 3/4"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 1/8"
Brand: Freud
Manufacturer #: 36-106
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 13/16"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 5/32"
Brand: Freud
Manufacturer #: 36-108
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 7/8"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 3/16"
Brand: Freud
Manufacturer #: 36-110
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 1"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 1/4"
Brand: Freud
Manufacturer #: 36-112
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 1-1/8"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 5/16"
Brand: Freud
Manufacturer #: 36-114
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 1-1/4"
Overall Length: 2-3/16"
Carbide Height: 1/2"
Radius: 3/8"
Brand: Freud
Manufacturer #: 36-116
Bearing Diameter: 3/8"
Shank Diameter: 1/4"
Overall Diameter: 1-1/2"
Overall Length: 2-1/2"
Carbide Height: 1/2"
Radius: 1/2"
